Name: MEYER SS-X9010D Pro-3DE Dental CBCT (Pre-Owned)
Brand: MEYER
SKU: FOBD-MEYER-SSX9010D-PRO3DE-USED
Availability: InStock

01

Sample clinical output

The image quality
speaks for itself.

An actual panoramic reconstruction from the SS-X9010D Pro-3DE — ask us for full-resolution DICOM sample files on WhatsApp.

Sample panoramic dental X-ray from MEYER SS-X9010D Pro-3DE CBCT — clear visualization of full dentition, roots, mandibular canal, maxillary sinuses and TMJ condyles

Adult · Standard panoramic

Exposure: 17 s

Detector: C10900D-40

Format: DICOM 3.0

Sample image from MEYER factory reference library. Full-resolution and unit-specific samples available by request.

02

Certified Pre-Owned Process

Inspected, calibrated, warrantied.
At a real discount to new.

Every SS-X9010D Pro-3DE we ship is processed through our Shanghai refurbishment facility — the same QC discipline we apply to Korean imports, adapted for MEYER-specific firmware and components.

01

Sourcing & Inspection

Units sourced from Chinese private clinics, dental chains and public hospitals — mostly 2019–2023 vintage units being replaced during upgrade cycles. Initial inspection rules out units with tube failure, water damage, or impact trauma.

02

Mechanical & Electrical

Rotational drive, motorized column, cable chains and sensor arm motion verified. Both panoramic and cephalometric sensor assemblies checked for alignment and pixel defect mapping. Positioning accessories replaced with new parts.

03

Imaging Calibration

X-ray output calibrated against IEC 60336 focal spot standard. kV/mA accuracy verified across the full 50–90 kV / 2–10 mA range. All 8 FOV programs tested via phantom scans; pano + ceph + CBCT modes individually validated.

04

Pack-Out & Documentation

Licensed MEYER software reinstalled on the accompanying workstation. Test DICOM files archived per unit. Custom crate built for sea or air freight. Full technical file + service history delivered with the unit.

What's included

✓Complete SS-X9010D Pro-3DE gantry with cephalometric arm
✓Both front and lateral CMOS detectors (dual-sensor panoramic)
✓MEYER native imaging software with valid license
✓Dedicated PC workstation — new, pre-configured (Intel i5+, 16GB+)
✓Patient positioning accessories (chin rest, bite block, ear clips, forehead support)
✓Digital touch control panel + remote exposure control
✓Calibration certificate & service history
✓Custom shipping crate (sea or air freight ready)
✓12-month warranty on main unit and both sensors
✓Remote installation support (video call with our engineers)

Honest disclosure

What pre-owned means specifically for this unit:

→Production years typically 2019–2023 — this is a current-generation product in active manufacturing.
→MEYER software UI is English-ready; some original labels (warning stickers, decals) remain in Chinese for regulatory reasons.
→Tube remaining life is measured and disclosed per unit, typically 75%+ on units we select.
→MEYER factory warranty (if any remained) does not transfer internationally. Your warranty is provided directly by us.
→Country-specific registration (FDA, CE, ANVISA, COFEPRIS) for Chinese-origin used devices is buyer's responsibility. We provide technical documentation.
→Cephalometric arm adds mass and footprint — without-ceph configurations are also available if you need a smaller room.

A unit-specific inspection report and condition photos are shared before purchase confirmation.

The sweet spot

Korean-class features. Chinese price.

Pre-owned Korean 3-in-1 CBCT: USD 28,000–45,000
Pre-owned MEYER SS-X9010D Pro-3DE: USD 18,000–28,000
Pre-owned Chinese single-FOV CBCT: USD 12,000–22,000

MEYER gives you the full 3-in-1 workflow at roughly 60% of the Korean price point.

Request current pricing

03

3-in-1 Imaging Modalities

One machine.
Three clinical workflows.

The Pro-3DE integrates CBCT, panoramic and cephalometric imaging into a single floor-standing unit — reducing your equipment footprint and centralizing patient data.

/ 3D CT

Cone-Beam CT

20-second CBCT acquisition with only 8–8.7 seconds of actual X-ray exposure. Eight selectable FOV sizes from endodontic 3.4×3.4 cm to full-face 16×10 cm cover virtually every clinical scenario.

Scan time: 20 s (8–8.7 s effective)
Voxel range: 70–420 μm
Gray scale: 16-bit
Reconstruction: < 60 s

/ PANO

Digital Panoramic

17-second panoramic exposure using MEYER's dual-sensor architecture — dedicated C10900D-40 CMOS detector with CsI scintillator coating. Also generates one-key panoramic reconstructions from CBCT data.

Exposure: 17 s
Detector: CMOS + CsI
Dual-sensor: Yes
3D-derived pano: One-key

/ CEPH

Cephalometric

12-second lateral cephalometric exposure via dedicated lateral detector (C10502D-42(X)). Orthodontic assessment, airway analysis and orthognathic surgical planning — all without switching machines.

Exposure: 12 s (lateral)
Detector: C10502D-42(X)
Technology: CMOS + CsI
Optional arm: Yes

Dual-sensor panoramic

Front & lateral detectors

Two separate CMOS detectors — C10900D-40 (front, for panoramic/CBCT) and C10502D-42(X) (lateral, for cephalometric). Each optimized for its specific modality rather than a single compromise sensor doing everything.

One-key 3D-to-2D

Panoramic from CBCT data

Take a CBCT volume and generate a high-quality panoramic with one click — useful when the patient already has a 3D scan and you need a pano for records or referral without re-scanning.

04

Multi-FOV Selection

Eight fields of view.
The right size for every case.

The Pro-3DE offers eight distinct FOV options — covering single-tooth endodontic detail at one extreme and full-face orthognathic planning at the other. Matching FOV size to clinical need keeps patient dose to a minimum.

GROUP 01

Endodontic detail

3.4 × 3.4

cm — Endo

Single-tooth isolation for endodontic imaging — root canal anatomy, apical pathology, vertical fractures, missed canals. At this FOV size you get the highest-resolution voxels (70 μm) and the lowest patient dose.

GROUP 02

Localized imaging

5 × 8

cm

8 × 10

cm

Specific-region imaging — quadrant implant planning, third molar assessment, impacted canine, suspected cyst or tumor. Lower dose than full-arch volume when you don't need the full arch.

GROUP 03

Standard dental arch

12 × 8

cm

12 × 10

cm

13 × 10

cm

The day-to-day clinical volumes. Full upper or lower arch including TMJ condyles, bilateral mandibular canals and maxillary sinus floors — everything an implant or oral surgery case typically needs.

GROUP 04

Wide-field / full face

15 × 10.5

cm

16 × 10

cm

Full-arch plus condyle-to-condyle coverage. Essential for orthognathic surgical planning, bilateral TMJ comparison, airway volumetric assessment and sinus pathology that extends beyond the standard volume.

05

Engineering Details

Clinical workflow features.

3-point patient stabilization

Minimized motion artifact

Chin rest, bite block, and ear-clip / forehead support combine to immobilize the patient head at three points — reducing motion blur and the need for re-scans. Particularly important for children and elderly patients.

Standing / seated / wheelchair

Patient accessibility

Motorized column adjustment covers standing and seated patient positioning. U-arm geometry and adjustable height make wheelchair-bound patient scanning practical without requiring transfer.

Pediatric mode

Child-optimized imaging

Dedicated child mode reduces kVp, mA and exposure time from adult defaults — following ALARA (As Low As Reasonably Achievable) dose principles for pediatric imaging. Important for orthodontic practices.

Dual-level laser alignment

Accurate positioning

Horizontal and sagittal laser positioning guides with dual-level adjustment — positions the patient at the anatomical reference before exposure, reducing re-takes and dose.

Touch panel + remote

Intuitive control

Integrated digital touch panel on the unit itself, plus a wired remote exposure control for the operator to stand behind shielding during the scan. Firmware supports English, simplified Chinese, and others on request.

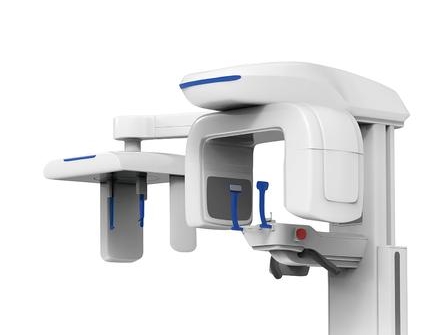

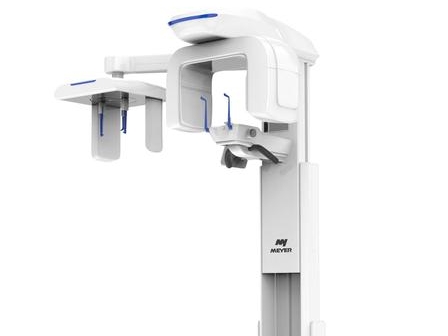

Side profile — ceph arm + main gantry

MEYER SS-X9010D Pro-3DE CBCT front angle showing integrated digital touch control panel, patient bite positioner, and motorized pillar — Front angle — touch panel & positioner

Images from MEYER factory reference. Real unit photos available on WhatsApp.

06

Specifications

Technical datasheet.

Specifications from MEYER's official product documentation. Individual pre-owned units are verified against these values during QC at our Shanghai facility.

Request full datasheet on WhatsApp

Product Identity

Model: MEYER SS-X9010D Pro-3DE
Type: 3-in-1 dental imaging (CBCT + Pano + Ceph)
Manufacturer: Hefei Meyer Optoelectronic Technology Inc.
Country of origin: China (Hefei)

Exposure Time

Panoramic: 17 seconds
CBCT: 20 s (8–8.7 s effective)
Cephalometric (lateral): 12 seconds
Local CT / Endo: 11.75–12 seconds

X-Ray Tube Assembly

Tube model: D-054SB (fixed anode)
Focal spot: 0.5 × 0.5 mm (IEC 60336)
Total filtration: 2.7 mm Al
Anode voltage: 50 – 90 kV (1 kV steps)
Anode current: 2 – 10 mA (1 mA steps)
Nominal power: 900 W
Focus-to-skin distance: 250 mm

FOV & Imaging

FOV options: 8 sizes (see below)
Small FOV: 3.4×3.4 / 5×8 cm
Standard FOV: 8×10 / 12×8 / 12×10 / 13×10 cm
Wide FOV: 15×10.5 / 16×10 cm
Voxel sizes: 0.07 / 0.19 / 0.26 / 0.33 / 0.45 mm
Gray scale: 16-bit (65,536 levels)
Reconstruction time: < 60 seconds

Detectors (Dual)

Front detector (CBCT + Pano): C10900D-40 · CMOS + CsI
Lateral detector (Ceph): C10502D-42(X) · CMOS + CsI

Physical & Electrical

Dimensions (with Ceph): 1880 × 1415 × 2485 mm
Dimensions (without Ceph): 1065 × 1415 × 2485 mm
Weight (with Ceph): 260–265 kg
Weight (without Ceph): 220 kg
Input voltage: AC 200–240 V ±10%, 50–60 Hz, 16 A

Workstation & Software

Operating system: Windows 10 / 11 (32/64-bit)
Minimum CPU: Intel Core i5 or above
Interface: Digital touch panel + wired remote
Software: MEYER native imaging (licensed)
File format: DICOM 3.0

Specifications source: MEYER product documentation. Final condition confirmed per unit during QC.

07

FAQ

Pre-owned buyer FAQ.

How does MEYER compare to the Korean 3-in-1 systems you sell? +

The MEYER SS-X9010D Pro-3DE covers the same three modalities (CBCT + Pano + Ceph) as the Genoray Papaya 3D Plus and Vatech Implagraphy — at roughly 60% of the price.

Where the Korean systems lead:

Larger FOV program library on Papaya (19 programs vs MEYER's 8)
More mature software ecosystems and third-party tool integration
Established international service networks
Stronger track record with regulatory bodies in Western markets

Where MEYER competes well:

Significantly lower cost of entry for a true 3-in-1 platform
Dual-sensor panoramic architecture (comparable to Papaya's three-sensor approach)
70 μm minimum voxel size — same class as Korean units
16-bit grayscale — same as the premium competitors

Is Hefei Meyer a legitimate manufacturer I can rely on? +

Hefei Meyer Optoelectronic Technology Inc. is a publicly-listed Chinese company with origins in agricultural optical sorting equipment, which expanded into medical imaging including dental CBCT. They're one of the larger Chinese dental imaging OEMs and have sold units internationally through various channels. Compared to smaller Chinese brands, you can expect continued spare-parts availability and firmware updates for the foreseeable future.

How do I verify the unit works before payment? +

Before any deposit we provide, for the specific unit you're buying:

Live video call showing the unit powering on, self-test and a phantom scan across all three modalities
Sample DICOM files (pano, ceph, CBCT at various FOVs) for your radiologist to review
Calibration report with measured kV/mA across the range
High-resolution condition photos (not factory renders)
Tube hours reading and service history from the previous owner

What warranty and support do you provide? +

12 months parts warranty on the main gantry and both detectors (front + lateral) from installation. During warranty we supply replacement parts free (buyer covers shipping) and provide 24/7 remote diagnostic support via TeamViewer or AnyDesk. We stock common MEYER spare parts in Shanghai for fast dispatch. Extended warranty available.

Do I need the cephalometric arm? +

The Pro-3DE is available in both configurations. The cephalometric arm adds about 815 mm to the width and 40–45 kg to the weight — and is valuable if you handle orthodontics, orthognathic cases or sleep-apnea airway analysis. If you don't do these workflows, the without-ceph version saves room space and about 15% on the unit price. Tell us which configuration fits when you inquire and we'll price accordingly.

Can I register this unit in my country? +

Regulations for Chinese-origin refurbished medical devices vary significantly. MEYER products are sold worldwide, but registration is jurisdiction-specific. We provide the full technical file, original product documentation, bill of lading and certificate of origin to support your local registration process. Tell us your country and target use when you inquire — we can give you a realistic read on what's involved.

What's the pricing and payment terms? +

Certified pre-owned SS-X9010D Pro-3DE units typically range USD 18,000–28,000 FOB Shanghai — depending on configuration (with/without ceph), production year, tube hours, and workstation spec. Standard terms: 30% deposit after unit documentation review, 70% before shipment. T/T preferred; L/C at sight accepted over USD 25K. Multi-unit orders receive volume pricing.

Installation and training? +

Remote installation support is included. Our engineers guide your local technician via video call — physical assembly, software installation, calibration verification, and operator training on the MEYER software. Standard installation takes 1–2 days with remote support. On-site installation by our engineers is available at extra cost (flight, accommodation, daily rate) for those who prefer hands-on setup.
